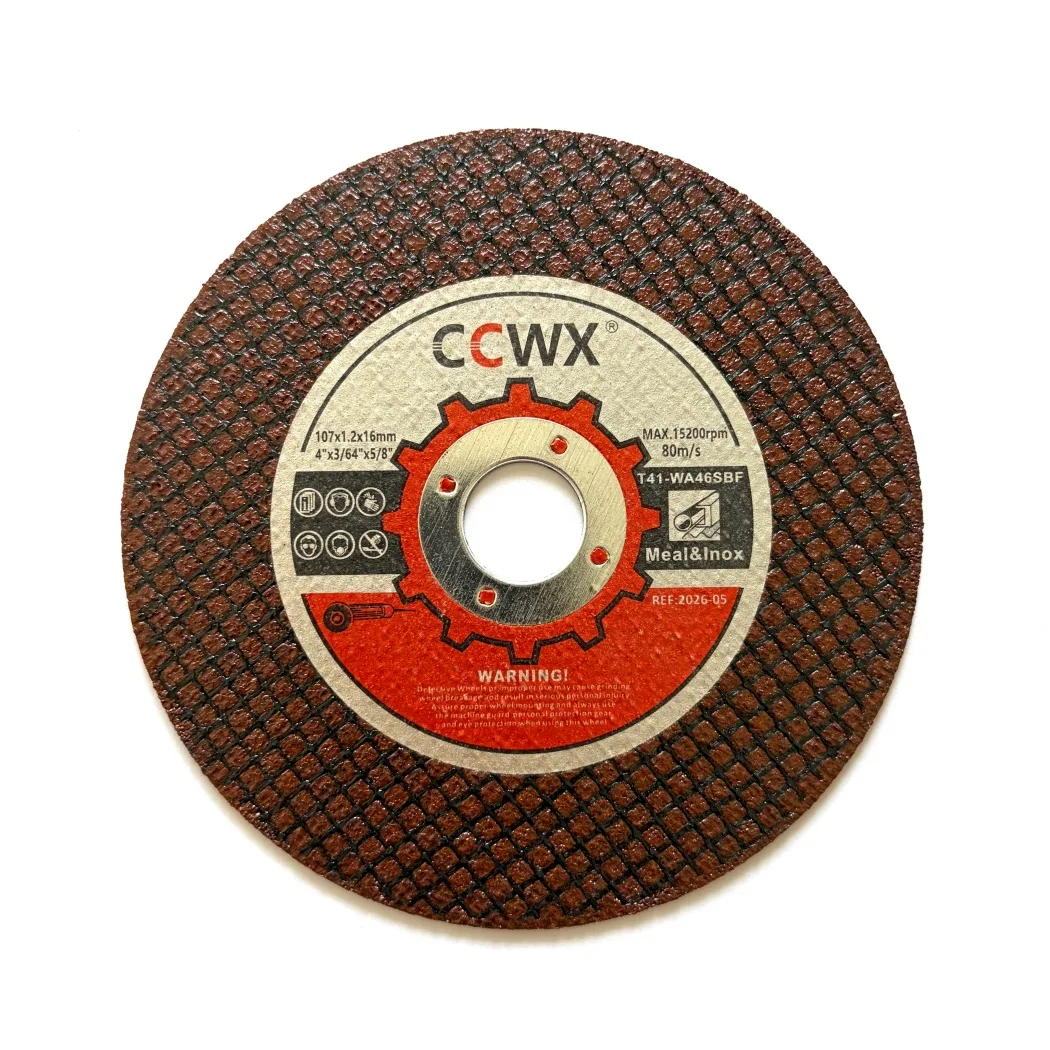

Stainless Steel Cutting Disc
1. Low-contamination formulation protects stainless steel corrosion resistance Harmful elements in the abrasive and bond are strictly controlled, with residual Fe, S and Cl below 0.1%. This helps prevent rust, salts and other corrosion-promoting contaminants from entering the wor...
Read the full description- Material
- White fused alumina (WA)
- Thickness — Metric
- 1.0-3.2 mm
- Inner diameter — Metric
- 16 mm, 22.23 mm, 24.5 mm, 32 mm
- Outer diameter — Metric
- 100-400 mm
Bodan supplies this item to specification. Share the material, machine and required finish and we will confirm the grade, dimensions and packing for your order.
Advantages
Key features
-
Low-contamination formulation protects stainless steel corrosion resistance
Harmful elements in the abrasive and bond are strictly controlled, with residual Fe, S and Cl below 0.1%. This helps prevent rust, salts and other corrosion-promoting contaminants from entering the workpiece surface during cutting, preserving its resistance to intergranular and pitting corrosion.
-
Resin bond with double-layer fiberglass reinforcement for safe, efficient cutting
A high-performance resin bond and two layers of high-strength fiberglass mesh provide excellent tensile and impact strength, helping resist wheel breakage and edge chipping. The thin design (≤3.2 mm) produces a narrow kerf and a flat cut surface, reducing material loss and secondary grinding.
-
Sharp cutting at peripheral speeds up to 80 m/s
Rated for a peripheral speed of 80 m/s, these wheels use the high rotational speed of angle grinders effectively. Quality alumina / zirconia alumina abrasives continuously self-sharpen to maintain sharp cutting edges, limit heat generation and reduce surface burning or discoloration on stainless steel.
Technical data
Specifications
- Material
- White fused alumina (WA)
- Thickness — Metric
- 1.0-3.2 mm
- Inner diameter — Metric
- 16 mm, 22.23 mm, 24.5 mm, 32 mm
- Outer diameter — Metric
- 100-400 mm
- Outer diameter — Imperial
- 4 in, 16 in
- Compatible tools
- Angle grinders / stationary cut-off machines
- Rotational speed
- 15200-3800 RPM 80 m/s
- Reinforcement layers
- Double-layer reinforcing mesh
- Specifications — Metric
- 105 x 1.2 x 16 mm, 107 x 1.2 x 16 mm, 115 x 1.2 x 22.2 mm, 125 x 1.2 x 22.2 mm, 150 x 1.6 x 22.2 mm, 180 x 1.6 x 22.2 mm, 230 x 2.0 x 22.2 mm, 350 x 2.8 x 25.4 mm, 350 x 3.0 x 32 mm, 400 x 3.0 x 25.4 mm, 400 x 3.2 x 32 mm
- Specifications — Imperial
- 4 x 3/64 x 5/8 in, 4.5 x 3/64 x 5/8 in, 5 x 3/64 x 7/8 in, 6 x 1/12 x 7/8 in, 7 x 1/12 x 7/8 in, 9 x 1/8 x 7/8 in, 14 x 1/8 x 1 in, 16 x 1/8 x 1 in
Search terms
Also known as
Other names buyers use for this product. Select one to search the catalogue.
Product details
About this product
Product Overview
These high-performance resin-bonded cut-off wheels are designed for austenitic stainless steel, duplex stainless steel and heat-resistant steel. Available in diameters from 100 to 400 mm, they combine a resin bond and high-strength fiberglass reinforcing mesh with high-purity abrasives low in iron, sulfur and chlorine to minimize contamination of stainless steel during cutting.
Product Specifications
| Item | Description |
|---|---|
| Name | Stainless Steel Cut-off Wheel |
| Outside diameter | 100-400mm(4”-16”) |
| Thickness | 1.0-3.2mm |
| Bore diameter | 16mm/22.23mm/24.5mm/32mm |
| Material | White fused alumina (WA) |
| Rotational speed | 15200-3800RPM 80M/S |
| Reinforcement layers | Double-layer reinforcing mesh |
| Compatible tools | Angle grinders / stationary cut-off machines |
Product Features
1. Low-contamination formulation protects stainless steel corrosion resistance
Harmful elements in the abrasive and bond are strictly controlled, with residual Fe, S and Cl below 0.1%. This helps prevent rust, salts and other corrosion-promoting contaminants from entering the workpiece surface during cutting, preserving its resistance to intergranular and pitting corrosion.
2. Resin bond with double-layer fiberglass reinforcement for safe, efficient cutting
A high-performance resin bond and two layers of high-strength fiberglass mesh provide excellent tensile and impact strength, helping resist wheel breakage and edge chipping. The thin design (≤3.2 mm) produces a narrow kerf and a flat cut surface, reducing material loss and secondary grinding.
3. Sharp cutting at peripheral speeds up to 80 m/s
Rated for a peripheral speed of 80 m/s, these wheels use the high rotational speed of angle grinders effectively. Quality alumina / zirconia alumina abrasives continuously self-sharpen to maintain sharp cutting edges, limit heat generation and reduce surface burning or discoloration on stainless steel.
Applications
Stainless steel processing: cutting sheets and pipes to size
Kitchenware manufacturing: cutting thin stainless steel sheet
Medical devices: cutting precision stainless steel components
Food-processing machinery: cutting stainless steel pipes and sections
Architectural decoration: cutting stainless steel curtain wall components and handrails
Shipbuilding: cutting stainless steel components
| Item No. | Specification / Metric (mm) | Specification / Imperial (in) | Material | Pieces per carton | Gross weight (kg) | Carton dimensions (cm) | Rotational speed / RPM |
|---|---|---|---|---|---|---|---|
| 41WA10510 | 105x1.2x16 | 4"x3/64"x5/8" | WAF46QBF | 800 | 23 | 49x25x20 | 15200 |
| 41WA10712 | 107x1.2x16 | 4"x3/64"x5/8" | WAF46QBF | 800 | 23 | 49x25x20 | 15200 |
| 41WA11512 | 115x1.2x22.2 | 4.5"x3/64"x5/8" | WAF46QBF | 600 | 22 | 36x26x26 | 13300 |
| 41WA12512 | 125x1.2x22.2 | 5"x3/64"x7/8" | WAF46QBF | 600 | 23 | 42x28x20 | 12200 |
| 41WA15012 | 150x1.6x22.2 | 6"x1/12"x7/8" | WAF36QBF | 320 | 22 | 42x31x16 | 10200 |
| 41WA18016 | 180x1.6x22.2 | 7"x1/12"x7/8" | WAF36QBF | 200 | 19 | 39x20x20 | 8500 |
| 41WA23019 | 230x2.0x22.2 | 9"x1/8"x7/8" | WAF36QBF | 100 | 19 | 26x25x25 | 7500 |
| 41WA35028 | 350x2.8x25.4 | 14"x1/8"x1" | WAF30QBF | 25 | 17 | 37x37x10 | 4400 |
| 41WA35030 | 350x3.0x32 | 14"x1/8"x1" | WAF30QBF | 25 | 17 | 37x37x10 | 4400 |
| 41WA40030 | 400x3.0x25.4 | 16"x1/8"x1" | WAF24QBF | 25 | 24 | 42x42x11 | 3800 |
| 41WA40032 | 400x3.2x32 | 16"x1/8"x1" | WAF24QBF | 25 | 24 | 42x42x11 | 3800 |
Handheld angle grinders are recommended for 100-230 mm wheels; stationary cut-off machines or section-cutting machines are recommended for 300-400 mm wheels. Never exceed the 80 m/s peripheral speed limit.
