Wheel Brushes, Knotted Wire

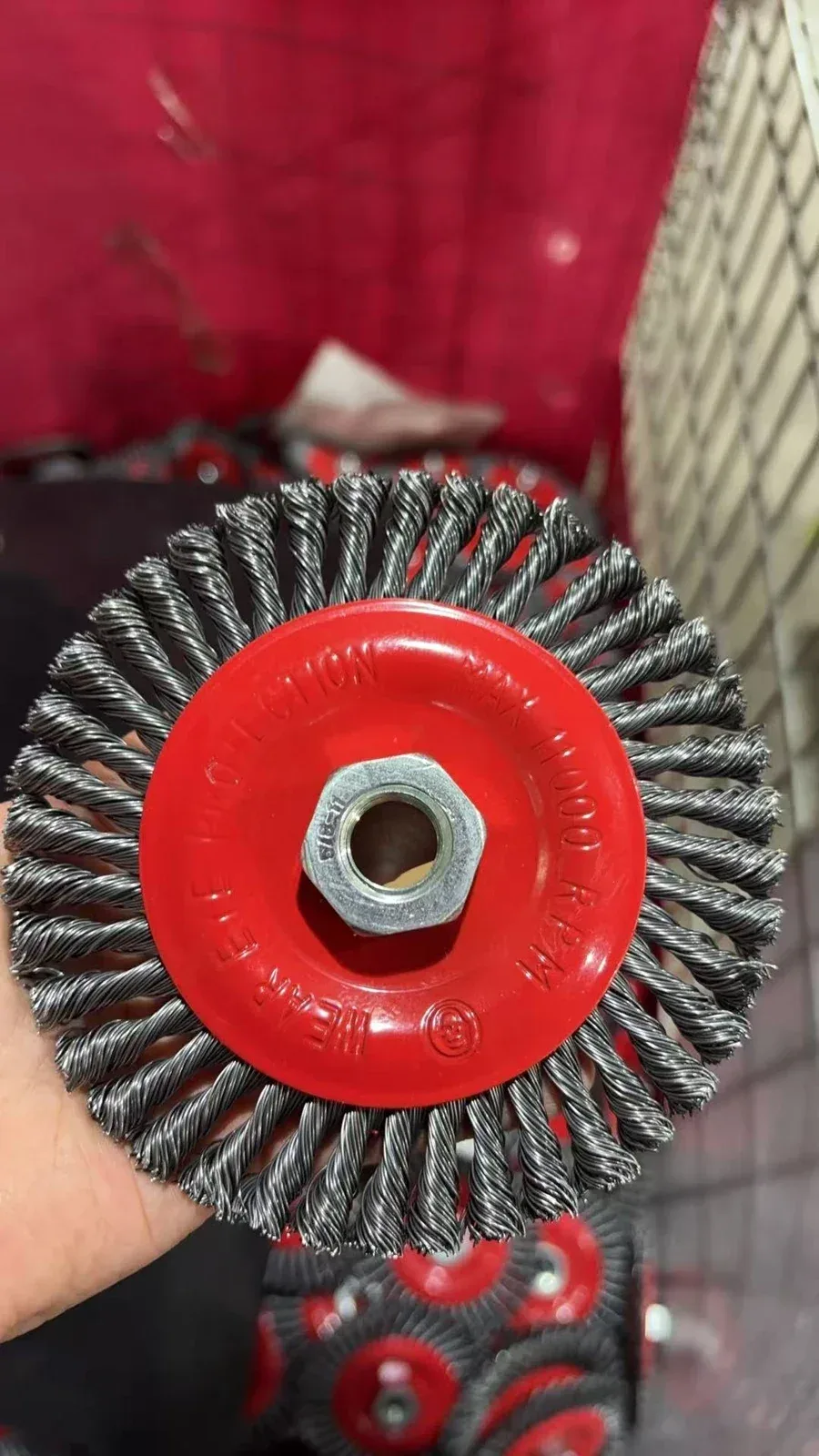

This knotted wire wheel is designed for common angle grinders. High-quality wire, precise balance and an even distribution of knots support horizontal or vertical use for general cleaning, weld cleaning and pipeline cleaning.
Read the full description- Material
- Steel, Stainless steel, Brass
- Wire type
- Knotted wire
- Wire diameter — Metric
- 0.35 mm, 0.5 mm, 0.8 mm
- Inner diameter — Thread
- 14×2, 5/8"-11
Bodan supplies this item to specification. Share the material, machine and required finish and we will confirm the grade, dimensions and packing for your order.
Advantages
Key features
-
High-quality wire
Durable wire supports efficient cleaning.
-
Multiple working angles
The wheel can be used horizontally or vertically.
-
Precise balance
Balanced construction supports smooth running and reduced vibration.
-
Even wire distribution
Uniform wire bundles provide consistent cleaning.
Technical data
Specifications
- Material
- Steel, Stainless steel, Brass
- Wire type
- Knotted wire
- Wire diameter — Metric
- 0.35 mm, 0.5 mm, 0.8 mm
- Inner diameter — Thread
- 14×2, 5/8"-11
- Outer diameter — Metric
- 100 mm, 115 mm, 125 mm, 150 mm, 175 mm, 200 mm
- Compatible tools
- Angle grinders
- Rotational speed
- 100 mm: 12500 RPM, 115 mm: 12500 RPM, 125 mm: 10000 RPM, 150 mm: 9000 RPM, 175 mm: 9000 RPM, 200 mm: 6000 RPM
Search terms
Also known as
Other names buyers use for this product. Select one to search the catalogue.
Product details
About this product
Product Overview
This knotted wire wheel is designed for common angle grinders. High-quality wire, precise balance and an even distribution of knots support horizontal or vertical use for general cleaning, weld cleaning and pipeline cleaning.
Model: HY9451N
Applications
- General cleaning
- Weld cleaning
- Removal of burrs, flash, scale and rust
- Pipeline cleaning
Wire Options
| Option | Description |
|---|---|
| Steel 0.35 | Steel 0.35mm |
| Steel 0.5 | Steel 0.5mm |
| Steel 0.8 | Steel 0.8mm |
| INOX 0.5 | Stainless steel 0.5mm |
| Brass 0.5 | Brass 0.5mm |
Product Specifications
| Item No. | Diameter (mm) | Thread | Max. RPM | Wire length (mm) | Knots |
|---|---|---|---|---|---|
| HY9451N | 100 | 14×2 | 12500 | 20 | 18/22 |
| HY9451N | 100 | 5/8"-11 | 12500 | 20 | 18/22 |
| HY9451N | 115 | 14×2 | 12500 | 23 | 18/22 |
| HY9451N | 115 | 5/8"-11 | 12500 | 23 | 18/22 |
| HY9451N | 125 | 14×2 | 10000 | 24 | 24 |
| HY9451N | 125 | 5/8"-11 | 10000 | 24 | 24 |
| HY9451N | 150 | 14×2 | 9000 | 26 | 30 |
| HY9451N | 150 | 5/8"-11 | 9000 | 26 | 30 |
| HY9451N | 175 | 14×2 | 9000 | 38.5 | 30 |
| HY9451N | 175 | 5/8"-11 | 9000 | 38.5 | 30 |
| HY9451N | 200 | 14×2 | 6000 | 40 | 35 |
| HY9451N | 200 | 5/8"-11 | 6000 | 40 | 35 |
Use Instructions
- Select the matching thread: 14×2 or 5/8"-11.
- Do not exceed the maximum RPM specified for the selected diameter.
- Choose steel 0.35 / 0.5 / 0.8 mm for general cleaning and rust removal; INOX 0.5 mm for applications with higher corrosion-resistance requirements; or brass 0.5 mm for softer materials or special surface treatment.
- Use the wheel horizontally or vertically to suit the working space.
- Wear protective eyewear, gloves and appropriate personal protective equipment.
